CSS Series Continuous Motion Side Sealers

Request More Information ›

The CSS Series Side Sealer is Texwrap’s continuous-motion side seal offering for applications demanding high throughput speeds with maximum package flexibility. This series machine has been one of Texwrap’s most popular wrappers due to its speed and versatility.

The CSS Series machines are “box-motion” style wrapper in which the device making the end seal moves horizontally with the product as the seal is being made. When the seal is complete, the head raises and the carriage returns to make the next seal. The vertical sealing motion is servo controlled which gives the operator control of the dwell time and the seal pressure from the touchscreen. The horizontal carriage motion uses Texwrap's patented hybrid pneumatic cam system which allows very fast movement of the carriage back and forth to seal and separate packages without the harsh stops and starts inherent in competitive systems. This allows maximum throughput speeds with long term reliability and minimum maintenance. Another feature increasing throughput speed, is Texwrap’s exclusive Motion Trim technology which electronically minimizes the motion of the end seal device.

Flexibility and ease-of-use are hallmarks of Texwrap design. With standard autospacing control, horizontal as well as vertical photo eyes, and the ability to precisely vary the conveyor speeds to relax the film between products, the CSS Series can accommodate randomly fed or choke-spaced product and accurately separate them for reliable, consistent packages using the absolute minimum amount of film.

Pizza line animation button
Features & Specs
  • Texwrap patented Motion Trim™ Technology that increases throughput by the running infeed and exit conveyors while seal jaws are in motion.
  • TEXWRAP Patented Hydraulic Cam Continuous Motion, and Servo end seal.
  • Standard auto-spacing control using vertical and horizontal photoeyes.
  • Horizontal and vertical photoeye controlled cross seal to provide automatic adjustment for bag length.
  • Texwrap Industry leading 10 year warranty.

HIGH THROUGHPUT AND PACKAGE VERSATILITY

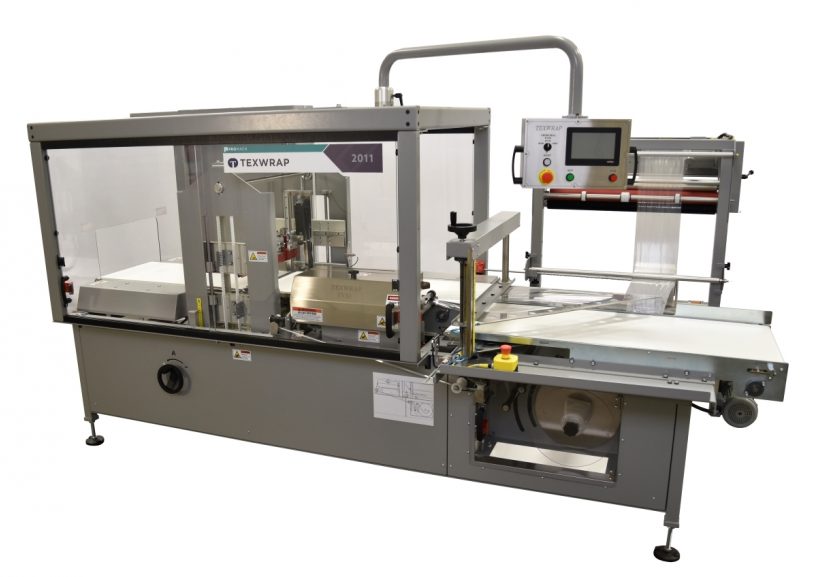

The CSS-2011 Continuous Motion Side Sealer is Texwrap’s continuous-motion side seal offering for applications demanding high throughput speeds with maximum package flexibility. A perennial favorite of contract packagers, this style of wrapper with its 10 inch high, 20 inch wide product capacity, and 100 feet per minute conveyor speeds is versatile enough to accommodate a variety of product sizes and configurations.

The CSS-2011 is a “box-motion” style wrapper in which the device making the end seal moves horizontally with the product as the seal is being made. When the seal is complete, the head raises and the carriage returns to make the next seal. The vertical sealing motion is servo controlled which gives the operator control of the dwell time and the seal pressure from the touchscreen. The horizontal carriage motion uses Texwrap's patented hybrid pneumatic cam system which allows very fast movement of the carriage back and forth to seal and separate packages without the harsh stops and starts inherent in competitive systems. This allows maximum throughput speeds with long term reliability and minimum maintenance. Another feature increasing throughput speed, is Texwrap’s exclusive Motion Trim technology which electronically minimizes the motion of the end seal device. In addition, the CSS-2011 includes a “speed maximizer” system which automatically brings the machine up to top speed for any given product setup.

FLEXIBILITY & EASE-OF-USE

Flexibility and ease-of-use are hallmarks of Texwrap design. With standard autospacing control, horizontal as well as vertical photoeyes, and the ability to precisely vary the conveyor speeds to relax the film between products, the CSS-2011 can accommodate randomly fed or choke-spaced product and accurately separate them for reliable, consistent packages using the absolute minimum amount of film. The CSS-2011 can also run either flat or centerfolded film when fitted with the flat film folder option.

The operator controls are located on a swivel-mount panel allowing it to easily be accessed from either side of the machine. The instructions are easy to understand, film threading is fast and easy, and, with the scrap winder in a very convenient location, operators find the CSS-2011 easy to keep running at maximum efficiency. With Allen-Bradley controls, AC inverter-duty motors, restricted service-level menus, and auto-tune heaters, the CSS-2011 is as popular with maintenance staffs as it is with the operators.

If your shrink wrap application requires the highest level of production performance across a wide variety of product sizes, true 24/7 reliability, maximum product flexibility, and minimum film usage, Texwrap’s model CSS-2011 is the perfect solution.

The CSS-1407 Continuous Motion Side Seal Wrapper is Texwrap's latest design advance for applications requiring the moderate speed wrapping of packages where a side seal is desired.

The CSS-1407 retains the hallmarks of design and proven reliability that the market has come to expect from Texwrap - all in a brand new compact size. The 2-axis servo head combined with the 140 feet per minute conveyor speed and Texwrap's exclusive Motion Trim™ technology make it the fastest and most flexible wrapper of its kind. The side seal is Texwap's exclusive Versa Seal. This device offers strong reliable seals, minimal trim requirements to save film width- all this in a device that requires very little maintenance.

Simplicity and ease-of-use were paramount in the CSS-1407's design. The controls are easily accessible and intuitive to use. When combined with the color touchscreen controls on the swivel panel, the easy access sliding doors, and the easy-mount-easy-thread film carriage, this machine gives new meaning to the term “operator-friendly”.

The design of the CSS-1407 will appeal equally to the maintenance department. We eliminated the requirement for shop air by substituting servo drives and we provided easy access to the wrapping area by allowing the sliding operator doors to lift out completely. From true Generation 3 servo design to solid 24/7 construction, the Texwrap CSS-1407 provides maximum reliability, ease of use, and minimum maintenance requirements resulting in the lowest total cost of ownership available on the market today.

The CSS-1809 Continuous Motion Side Seal System is Texwrap’s offering for applications demanding a very fast servo wrapper versatile enough to accommodate a variety of product sizes. The Model CSS-1809 sealer is built for the most demanding production environments. The CSS-1809 uses “Generation 3” servo technology meaning that it was designed from the ground up to integrate servo technology, PLC control, and the mechanical elements of the machine. The result is one incredibly fast, reliable, and flexible wrapper with minimal moving parts, minimal maintenance requirements and maximum performance.

Flexibility and ease-of-use are hallmarks of Texwrap design. The CSS-1809 series has many built-in features such as programmable cross seal pressure, speed modulation to automatically increase or decrease system speed to follow upstream production, “auto space” to precisely separate randomly-fed products, and a “maximizer” control to automatically bring the entire system to top speed for any given setup. In designing the CSS-1809 series, Texwrap also considered the many different types of upstream feeding systems with which the CSS-1809 might be paired and built in extra capacity making it easy to integrate into almost any application.

If your shrink wrap application requires the highest level of production performance, true 24/7 reliability and maximum flexibility to accommodate a variety of product sizes, the Texwrap Model CSS-1809 is the perfect solution.

Texwrap’s CSS Series Side Seal Wrappers can be configured with an infeed from Texwrap to take the product from the upstream equipment and handle it to prepare the product to be wrapped and then passed through the shrink tunnel to fully automate the wrapping process.

Texwrap has developed a variety of standard infeed designs or we can create a unique design depending on the application requirement. Our CSS Series Side Seal Wrapping Turnkey Solutions provide the customer with a complete solution to reduce or dramatically reduce manual labor required for the line’s shrink wrapping operations.
